Yuyao Huangong automation instruments factory
$24≥5Others
| Đặt hàng tối thiểu: | 5 |
| Giao thông vận tải: | Ocean,Land,Air,Express |
| Hải cảng: | ningbo |
Bóng râm:
Mẫu số: PB84
Mẫu số: PB8400-7
Measuring Medium: Gas/liquid
Accuracy Grade: 0.25%F.S. 0.5%F.S.
Pressure Range: -0.1~60MPa
IP Rating: Ip65
Chứng nhận: CE/ISO/Sil
Over Pressure: 1.5 Times The Full Scale
Wetted Parts: 304 Stainless Steel
Ambient Temp: -20~85℃
Type Of Protection: Standard Type / Exia II CT4ga / Exia II CT6ga
Power Supply: 24vdc
Transport Package: Carton Packing
Specification: PCS
Trademark: HUANGONG
Origin: China
Khả năng sản xuất: 120000 Pieces / Year
Tùy chỉnh: Available
Type: Ordinary Clamp Type

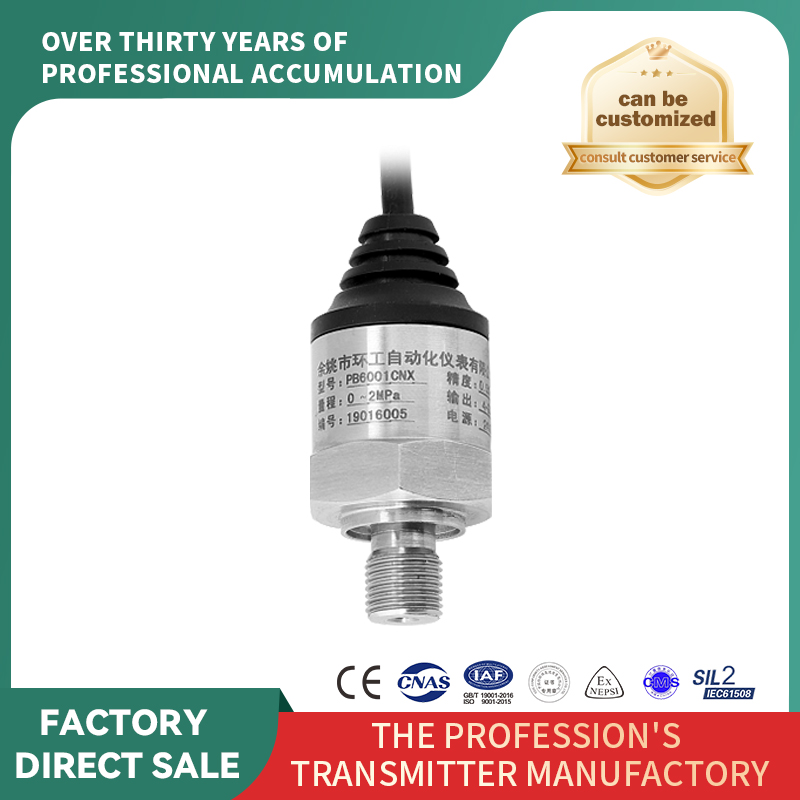

Structure Type: Diffused Silicon Pressure Transmitter
Chi Phí Vận Chuyển: Liên hệ với nhà cung cấp về cước vận chuyển và thời gian giao hàng ước tính
| Loại gói hàng | : | Bao bì carton |
The file is encrypted. Please fill in the following information to continue accessing it
| Basic Error | 0.25%F-S, 0.5%F-S |
| Measuring Range | -0.1~60MPa, minimum range 10kPa |
| Linearity | Better than 0.25%F-S |
| Temperature drift | <±0.75%F-S (0~50ºC) |
| Long-term stability | ≤0.25%F-S/year |
| Response time | ≤10mS |
| Power supply | 24VDC (or 14VDC~36VDC any constant voltage power supply) |
| Output | 4~20mA, 1~5V, 0~5V, 0~10V |
| Pressure Overload Limit | 1.5 times the maximum rated pressure |
| Load Resistance | 0~600Ω (for 24VDC, 4~20mA 2-wire) |
| Communication Protocol | 485 or HART protocol optional |
| Ambient Temperature | -20~85ºC |
| Storage temperature | -45~+125ºC |
| Measured medium temperature | -20~85ºC (Higher than 85ºC can be dissipated by heat pipe) |
| Pressure interface | Threads, flanges, clamps, etc. can be customized. |
| Shell protection grade | IP65 |
| Intrinsically safe and explosion-proof | Explosion-proof grade Exia II CT4Ga |
| Interface material | 304 or 316L stainless steel |
| Isolation diaphragm material | 316L stainless steel (or Hastelloy C) |
| Housing material | 304 stainless steel |
| Power Consumption | 304 stainless steel |
